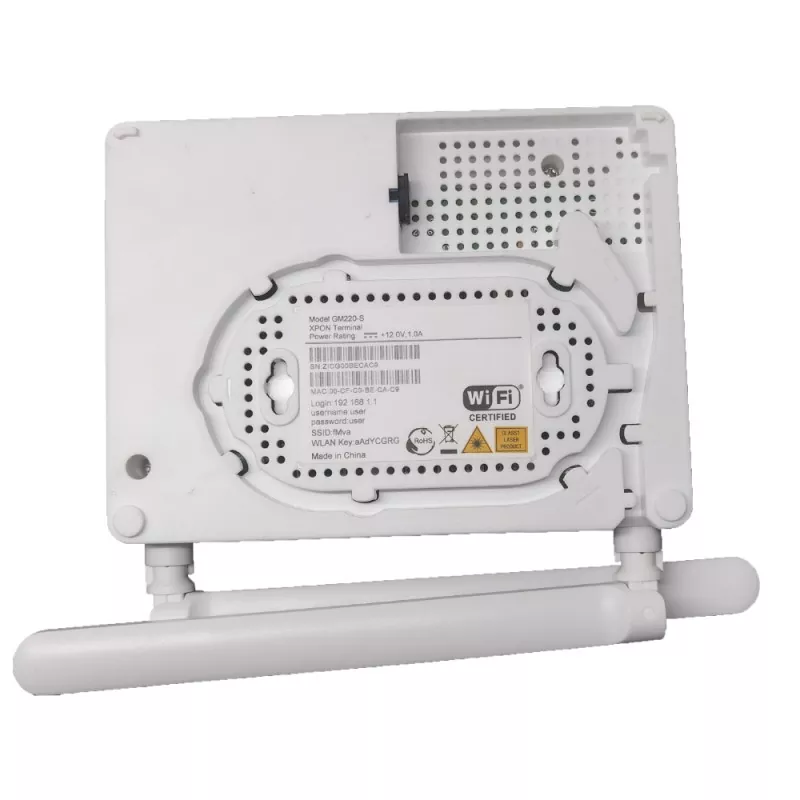

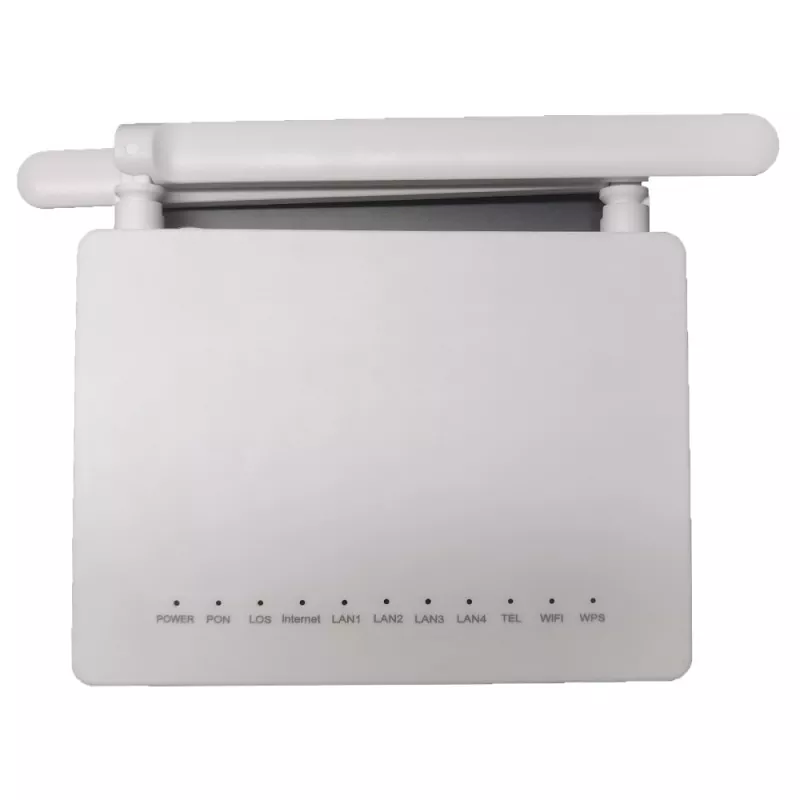

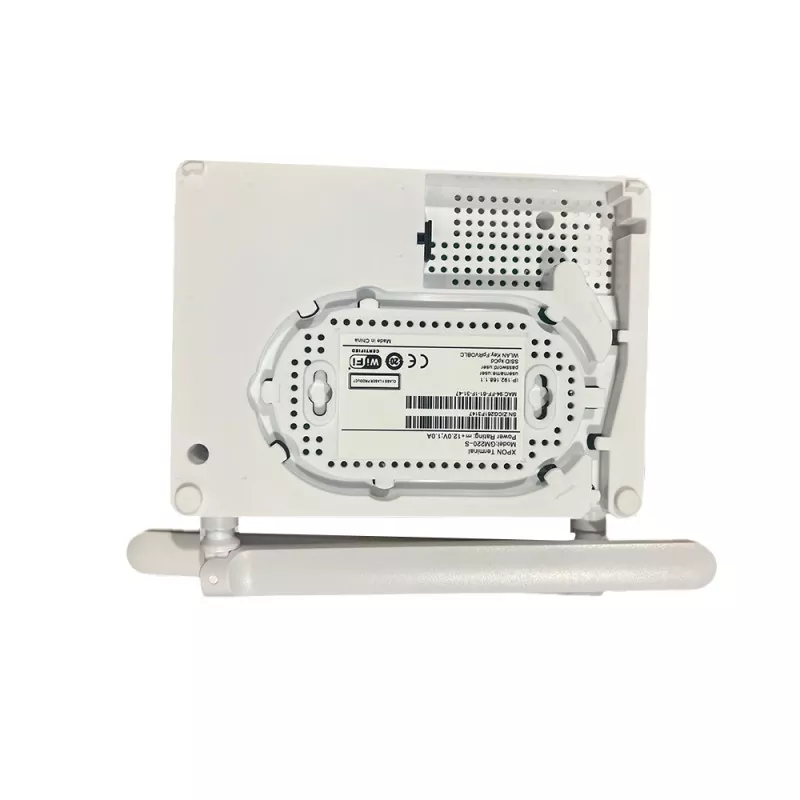

The TENKILOMETERS high quality GM220S SINGLE BAND GPON ONU ONT FTTH is a new terminal level GPON ONT, which is a variety of FTTB \ FTTH \ FTTO accessing ONT for ISPs FTTH network applications. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. At the same time, GM220S FTTH supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTB\FTTH\FTTO equipment needs, working with our NGBN unified network management system.
|
Model Number |
GM220S |
|
PON Type |
XPON |
|
Brand Name |
Original |
|
Use |
ALL |
|
Network |
Wireless Lan, POE, wifi, 4g, 3G |
|
Color |
White |
|
Material |
Plastic |
|
Ports |
1GE +3FE+TEL |
|
Power |
12V |
|
Weight |
0.5kg |
|
Network |
Wireless Lan, POE, wifi, 4g, 3G |
|
Dimensions |
11.5mm*9mm*2.6mm |
|
Package |
Carton Box |
|
Firmware |
English |
· GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed
· Active Ethernet WAN port with 1.25Gbps bi-direction link speed
· 1x GE+3FE Ethernet RJ45 Ports
· 2×2 11n WIFI support 300Mbps link speed
· 1x FXS RJ11 ports for Voice service
· 1x USB ports in host or device mode
· DC 12V adaptor, max 1.5A current -5 to 50℃ operating ambient temperature
