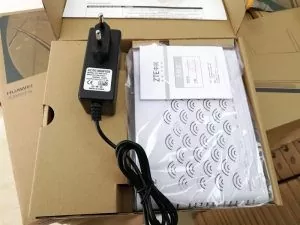

The TENKILOMETERS high quality ZXHN F623 SINGLE BAND WIFI GPON ONU ONT FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. ZTE GPON ONU F623 comes1GE+3FE ports+1 phone port and WIFI with 2 antennas high gain wireless function
F623 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
|
Brand |
|
|
Model |
F623 |
|
Optical port |
1 x GPON interface (SC/APC) |
|
Transmission Distance |
0-20KM |
|
Transmit rate |
2.488Gbps downstream; 1.244Gbps upstream |
|
User-Network Interface |
1 Ge Port and 3 Fe Port |
|
1 x Wi-Fi interface |
|
|
1 x USB host interface |
|
|
1x POTS interfaces |
|
|
Wavelength |
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
|
Receiving Sensitivity |
-28dBm |
|
Transmitting Optical Power |
0.5~5dBm |
|
Power consumption |
<10W |
|
Dimensions |
220mm(W) x 44mm(H) x 160mm(D) |
|
Working temperature: |
0oC ~ 40oC |
|
Working humidity |
5% ~ 95% |
|
Weight |
380G |
|
Power supply |
12V DC |
· Supported service: Internet, IPTV
· GPON: 8 T-CONTs, 32 GEM Ports
· VLAN: 802.1Q, 802.1P, 802.1ad
· MAC address table: 256
· Multicast: IGMP v1/v2 Snooping
· Multicast group per user port: 256
· QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
