HG8346M SINGLE BAND XPON ONU ONT FTTH 4FE

TENKILOMETERS is a supplier of HG8346M SINGLE BAND XPON ONU ONT FTTH 4FE. TENKILOMETERS quality HG8245A features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245A provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. (optical network terminal ONT for short) is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8346M provides two POTS ports, four FE auto-adapting Ethernet ports, and one Wi-Fi port.

Send Inquiry

Product Description

The TENKILOMETERS quality The TENKILOMETERS high quality HG8346M SINGLE BAND XPON ONU ONT FTTH 4FE features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245A provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8346M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Model	Configuration					Dimension/pcs
Model	LAN	Telephone	Wifi	PPPOE	Firmware	Dimension/pcs
HG8346M	4FE	2pots	yes	yes	English	17613928mm/0.5kgs
Remarks	Gpon , internal WIFI

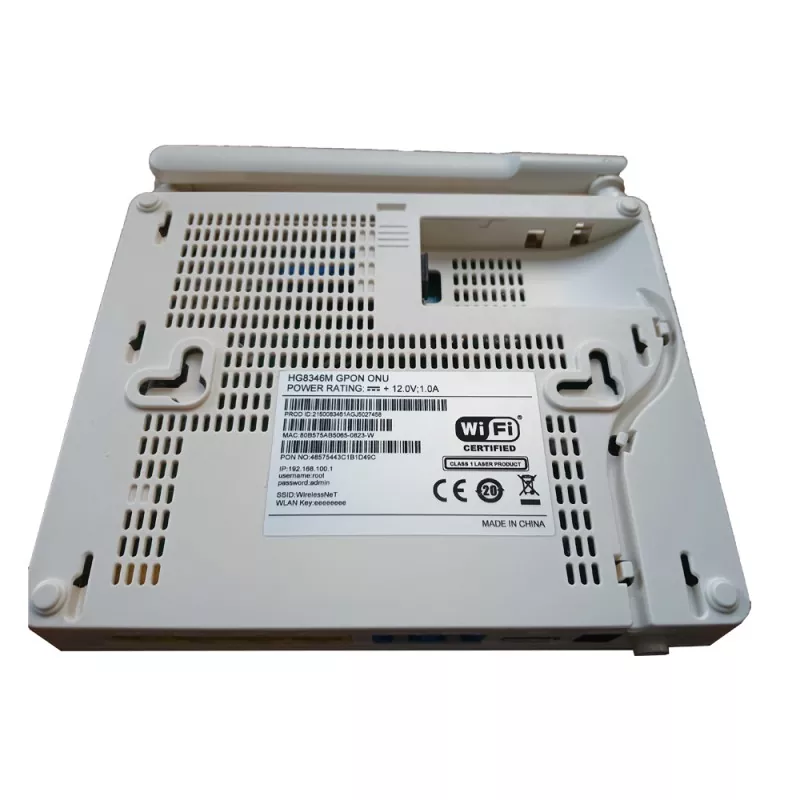

Product Pictures

HG8346M SINGLE BAND WIFI XPON ONU ONT FTTH Specifications

Brand	Huawei
Model	HG8346M
Pon	GEPON
Connector type	SC/UPC
Ports	4FE+2POTS+2.4G WIFI
WAN	2.4G Hz: 2*2MIMO 802.11b/g/n
Atenna gain	2dBi
Box dimentions	25012035mm (20pcs/ carton)
Box weight	0.45kg
Power supply	output :11-14v DC 1A
Power supply	input: 100-240v AC 50/60Hz
Operating temperature	0-40℃
Operating humidity	5%-95% , no-condensing
Cooling	passive cooling
Voice protocol	SIP H.248
