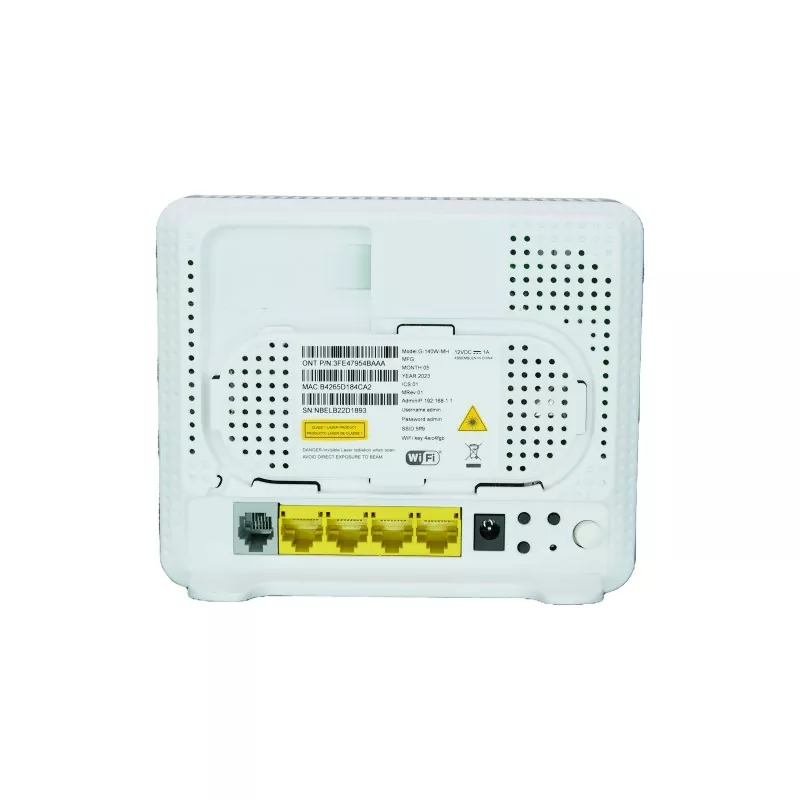

The high quality Nokia G-140W-MD SINGLE BAND GPON ONU ONT FTTH is an Optical terminal unit with1*GE+3*FE with WiFi. The modem delivers gigabit speeds in an Optical LAN environment. it has 1*GE+3*FE with WiFi user interfaceand offering premium service experience for all services, including data and video. This ONT terminates a full standard compliant Gigabit Passive Optical Network (GPON) fiber interface. G-140W-MD is applied for business offices, hospitals, hospitality, real estate developers and other organizations that need high capacity LAN to support a new generation of services, improve productivity and build a competitive edge. It is suitable for indoor deployments and can be mounted on the desktop,wall or ceiling.
|
Brand |
Nokia |
|
Model |
G-140W-MD |
|
Network-side Port |
GPON |
|
Connector type |
SC/UPC |
|
User-side Ports |
1 x GE + 3 x FE + Wi-Fi |
|
Typical power consumption |
8 W |
|
Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz |
|
System power supply: 12 VDC,1 A |
|
|
Support IPv4 or IPv6 |
IPv4 and IPv6 |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
|
Dimensions (length x width x height) |
170 mm x 137 mm x 32mm |
|
Weight |
<1kg |
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
Environment humidity: 5% to 95% (noncondensing) |
· GPON ONT G-140W-MD Optical Network Terminal
· GPON ONT, 1*GE+3*FE with WiFi
· ENG firmware
· Support IPv4&IPv6
· Connector type SC/UPC
· Can be configured by OLT or Web or NMS
· Routing function supported
