G-140W-G SINGLE BAND GPON ONU ONT FTTH

The G-140W-G SINGLE BAND GPON ONU ONT FTTH is a solution for home networking delivered by Gigabit Passive Optical Network (GPON). The device has built-in Wi-Fi® 802.11b/g/n networking with triple play capability that simplifies the home equipment experience. In addition, It can provide triple play services with voice, video and data. G-140W-G is designed to take advantage of Nokia award-winning management platforms. These platforms include a customized Motive™ Home Device Manager that is integrated with the Nokia 5520 Access Management System (AMS) to deliver a uniform end-to-end operations, administration, and maintenance (OA&M) solution that carriers need to provide subscriber satisfaction.

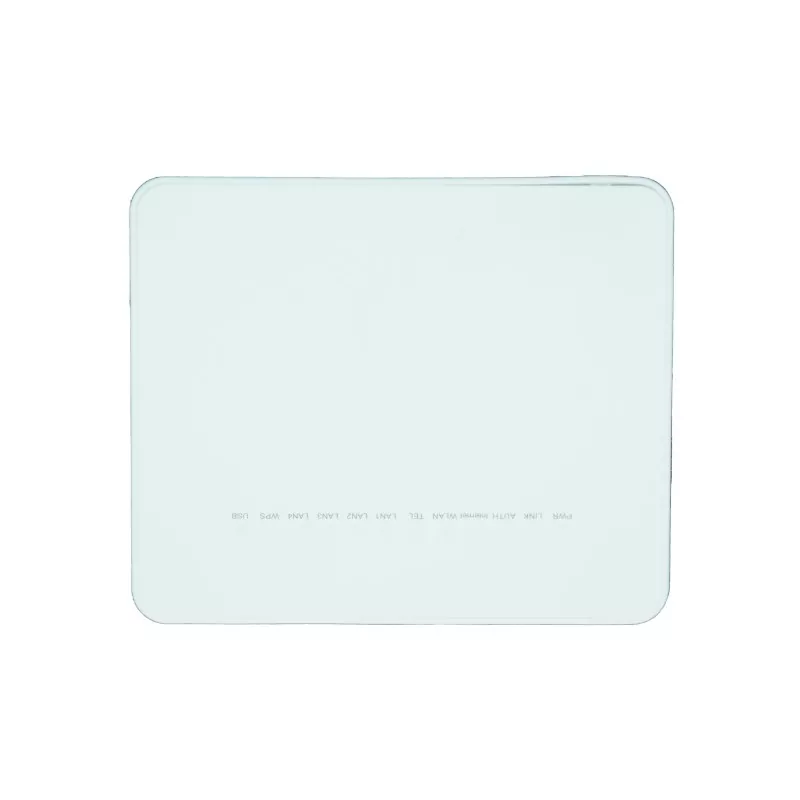

Nokia G-140W-G SINGLE BAND WIFI GPON ONU ONT FTTH Product Pictures

Nokia G-140W-G SINGLE BAND WIFI GPON ONU ONT FTTH Product Specifications

Nokia G-140W-G SINGLE BAND WIFI GPON ONU ONT FTTH Product Features

· Single GPON interface with data rates of 2.488 Gb/s downstream, 1.244 Gb/s upstream

· 4 Ethernet LAN connections (1 GigE and 3 Fast Ethernet [FE])

· 1 plain old telephone service (POTS) connection

· Reset button

· LED indicators on/off button

· Wireless LAN (WLAN) and Wi-Fi Protected Setup (WPS) enable/disable buttons

· UPnP Internet Gateway Device (IGD) 2.0 support 2.4 GHz wireless interface

· Two 3 dBI indoor multi-directional internal Wi-Fi antennas (not detachable)

· Multiple input, multiple output (MIMO)

· Support for up to 20 concurrent wireless connections

· 11b/g/n compliant

· Medium dependent interface/medium dependent interface crossover (MDI/MDIX) auto sensing

· Auto-negotiation for speed and duplex

· Multiple voice codec
