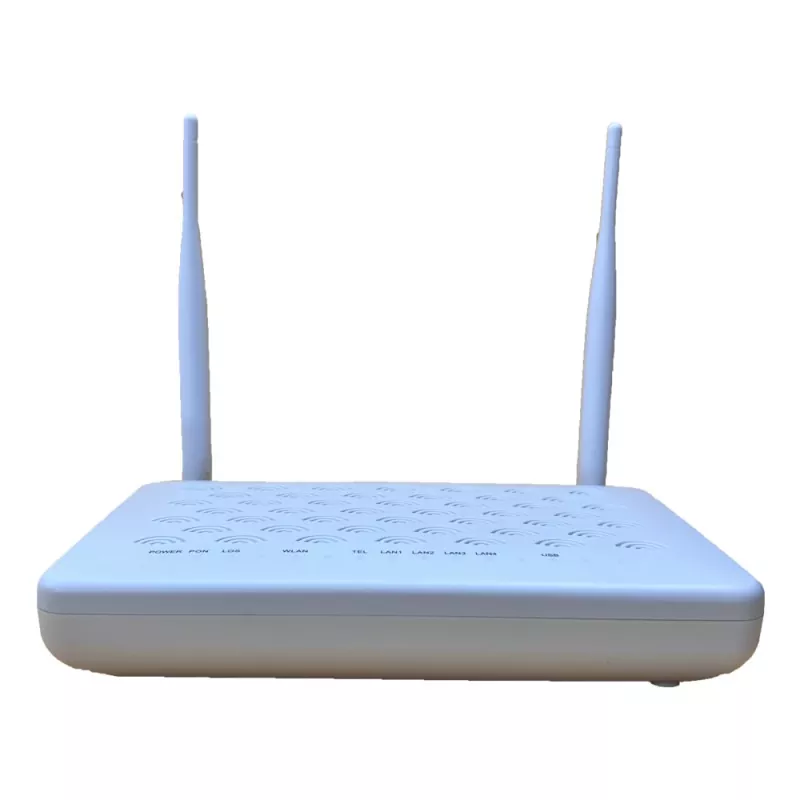

The TENKILOMETERS high quality ZXHN F660V6.0 FTTH is GPON optical terminal unit with 1GE + 3FE + 1POTS + WIFI + 1USB ports This model is designed for the FTTH scenario. It supports the L3 function to help the subscriber build a smart home network. It provides subscribers with convenient services, including voice, video (IPTV) and high-speed Internet access
|
Model |
F660V6.0 |
|
Optical port |
1 x GPON interface (SC/UPC) |
|
Transmission Distance |
0-20KM |
|
Transmit rate |
2.488Gbps downstream; 1.244Gbps upstream |
|
User-Network Interface |
4 x 10/100/1000Base-T |
|
1 x Wi-Fi interface |
|
|
1 x USB host interface |
|
|
1 x POTS interfaces |
|
|
Wavelength |
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
|
Receiving Sensitivity |
-28dBm |
|
Transmitting Optical Power |
0.5~5dBm |
|
Power consumption |
<10W |
|
Dimensions |
220mm(W) x 44mm(H) x 160mm(D) |
|
Working temperature: |
0oC ~ 40oC |
|
Working humidity |
5% ~ 95% |
|
Weight |
380G |
|
Power supply |
12V DC |
· Supported service: VoIP, Internet, IPTV
· GPON: 8 T-CONTs, 32 GEM Ports
· VLAN: 802.1Q, 802.1P, 802.1ad
· MAC address table: 1K
· L3 function: DHCP server/Client, DNS Client, NAT
· IPv6: Dual Stack, DS-Lite
· VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38
· Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS
· Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise
· Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping
· Multicast group per user port: 256
· QoS: service flow classification based on a physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
· Management: local web management, OMCI, TR069
· Management: local web management, OMCI
· USB: DLNA DMS, USB backup, 3G/LTE dongle
