F608 SINGLE BAND GPON ONU ONT FTTH

TENKILOMETERS is a supplier specializing in the production of F608 SINGLE BAND GPON ONU ONT FTTH, providing customers with preferential prices and fast delivery services. TENKILOMETERS supplier’s ZXHN F608 SINGLE BAND WIFI GPON ONU ONT FTTH is GPON optical terminal unit with 1GE+3FE+1VOICE+WIFI+USB

Send Inquiry

Product Description

The TENKILOMETERS F608 SINGLE BAND GPON ONU ONT FTTH is high-quality，with a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. ZTE GPON ONU F608 comes1GE+3FE ports+1 phone port and WIFI with 2 antennas high gain wireless function

F608 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

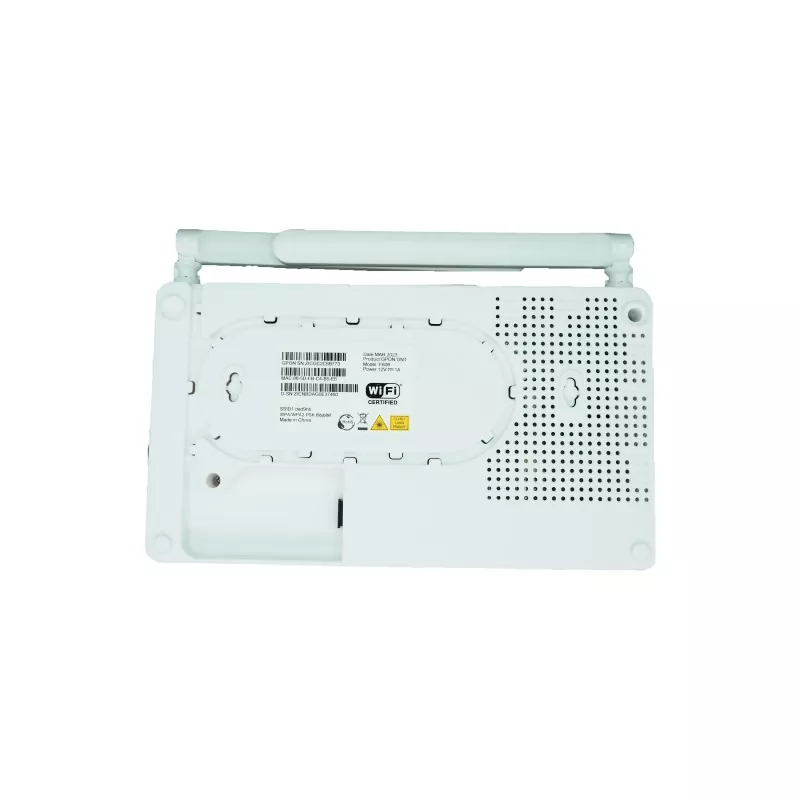

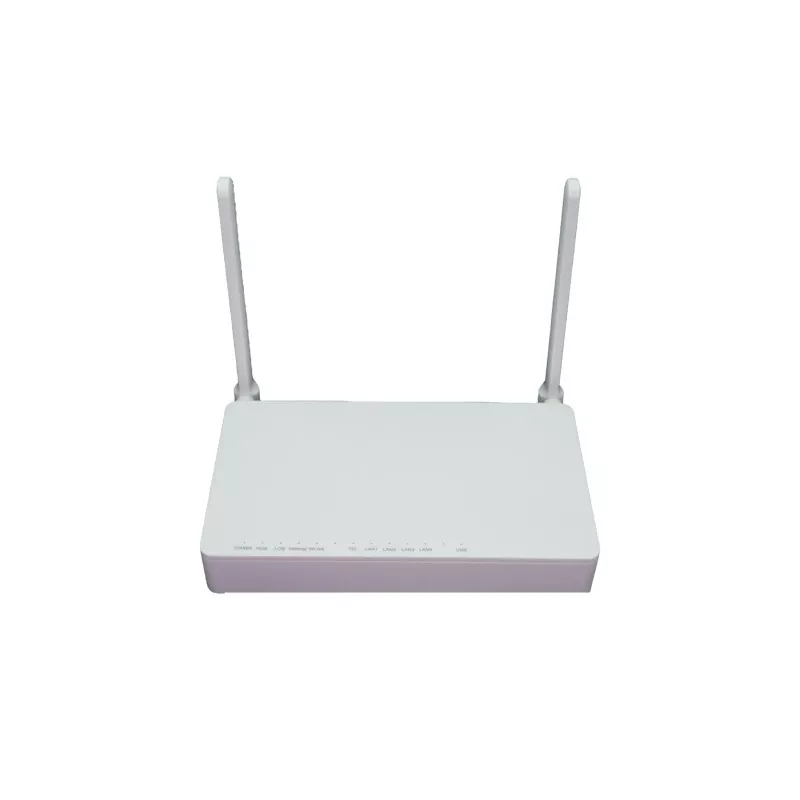

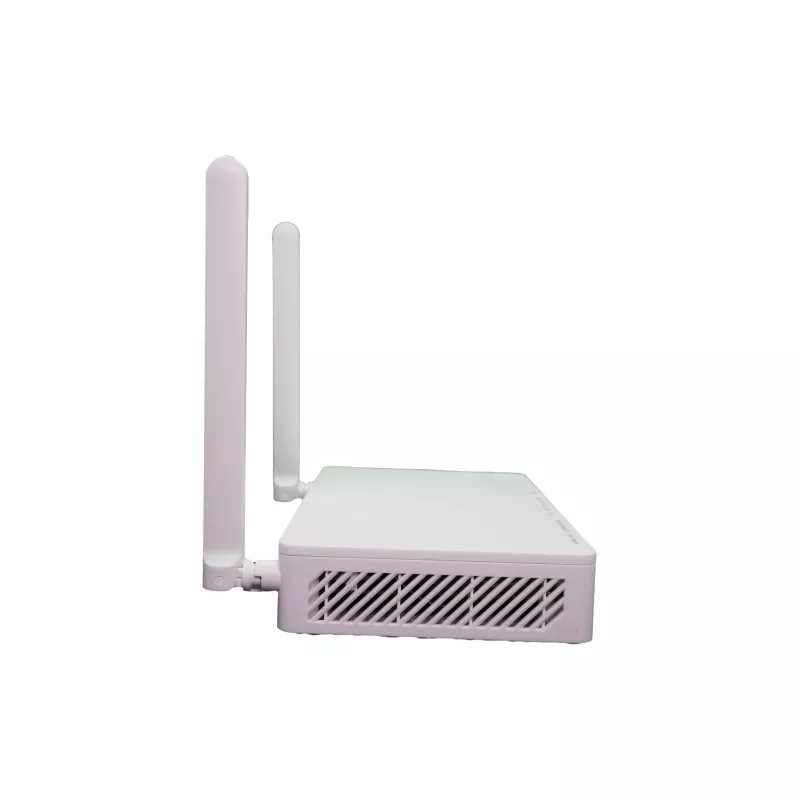

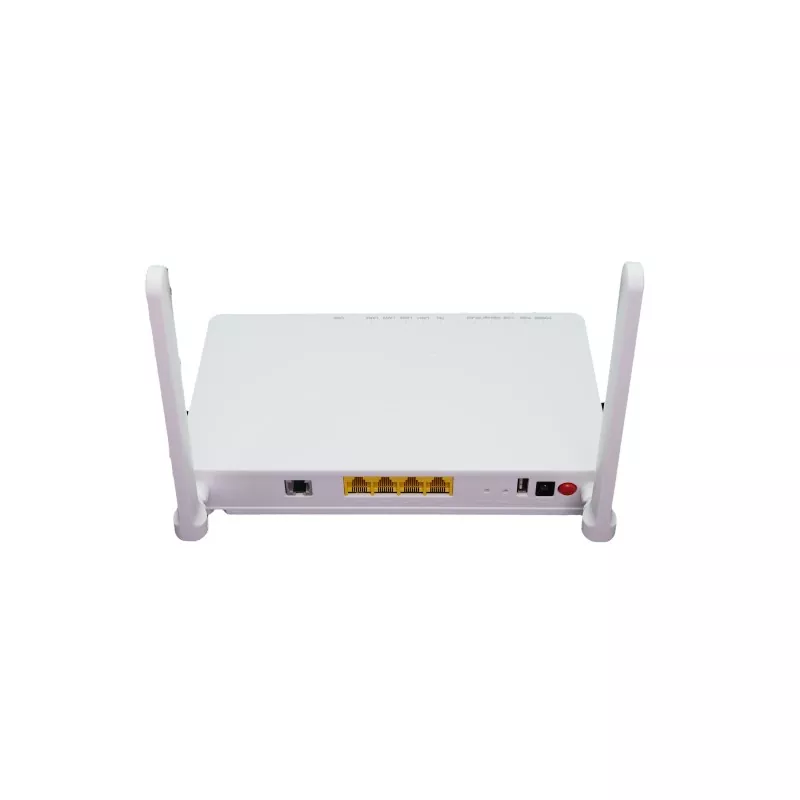

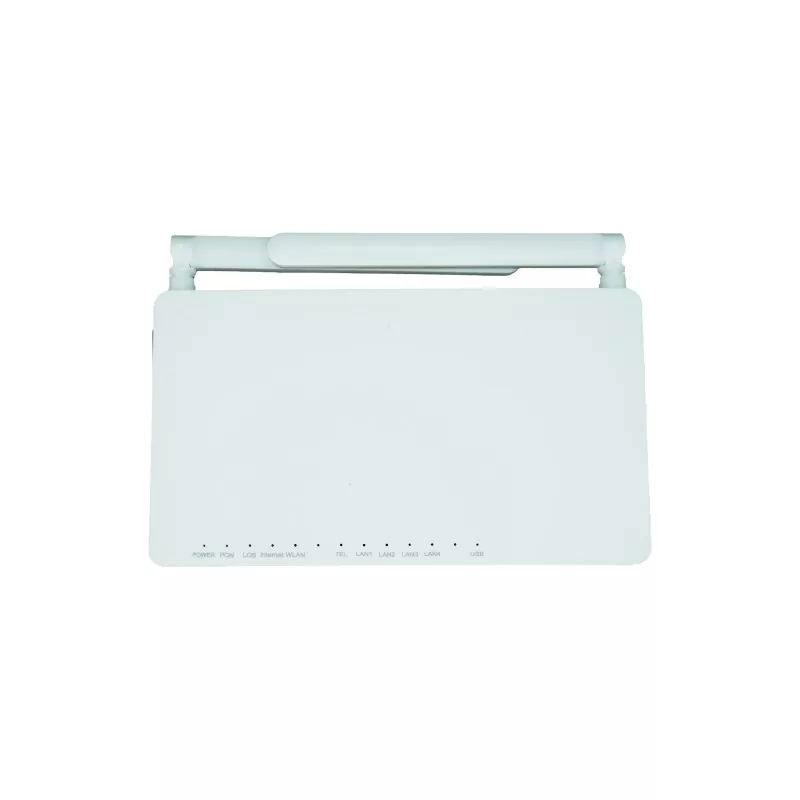

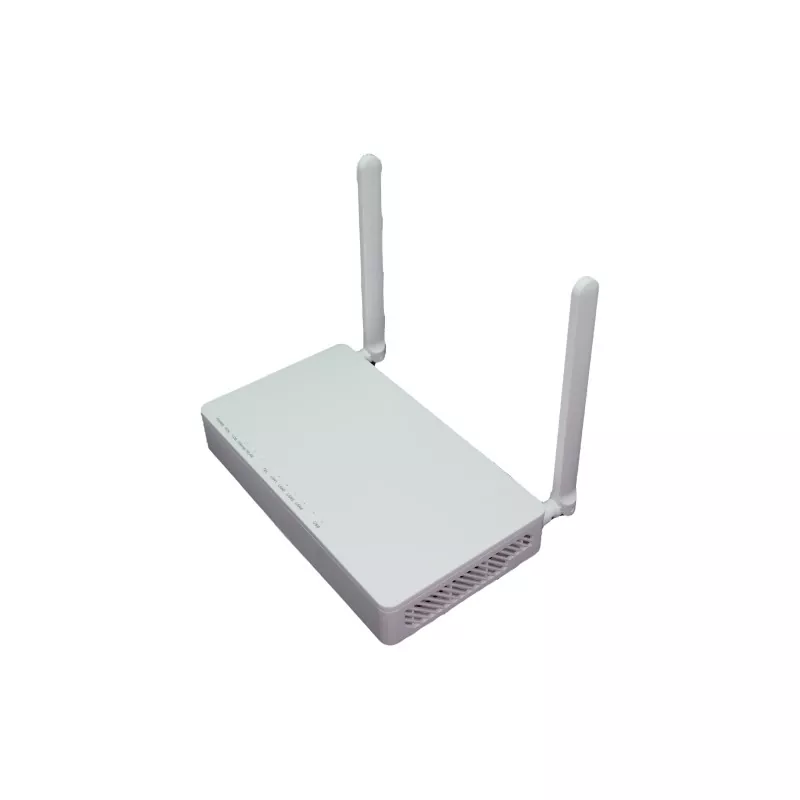

ZXHN F608 FTTH Product Pictures

ZXHN F608 SINGLE BAND WIFI GPON ONU ONT FTTH Product Specifications

Brand	ZTE
Model	F608
Optical port	1 x GPON interface (SC/UPC)
Transmission Distance	0-20KM
Transmit rate	2.488Gbps downstream; 1.244Gbps upstream
User-Network Interface	1 Ge Port and 3 Fe Port
	1 x Wi-Fi interface
	1 x USB host interface
	1x POTS interfaces
Wavelength	Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
Receiving Sensitivity	-28dBm
Transmitting Optical Power	0.5~5dBm
Power consumption	<10W
Dimensions	220mm(W) x 44mm(H) x 160mm(D)
Working temperature:	0oC ~ 40oC
Working humidity	5% ~ 95%
Weight	380G
Power supply	12V DC

ZXHN F608 SINGLE BAND WIFI GPON ONU ONT FTTH Product Features

· Supported service: Internet, IPTV

· GPON: 8 T-CONTs, 32 GEM Ports

· VLAN: 802.1Q, 802.1P, 802.1ad

· MAC address table: 256

· Multicast: IGMP v1/v2 Snooping

· Multicast group per user port: 256

· QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
